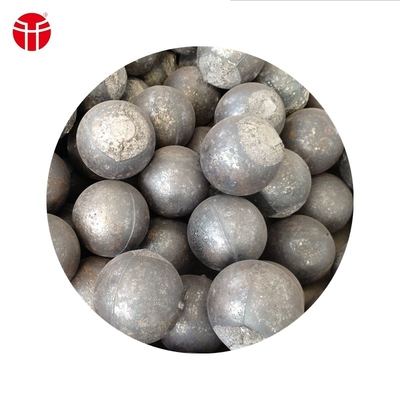

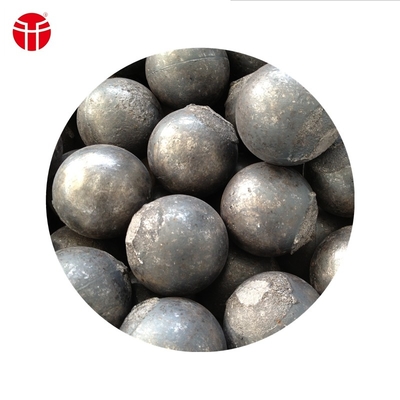

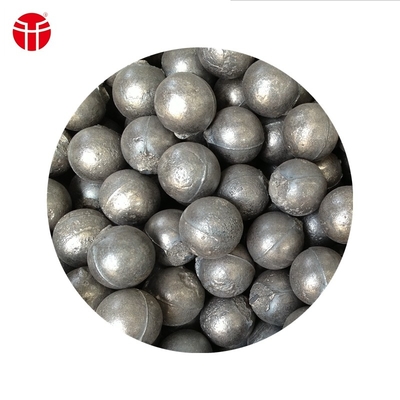

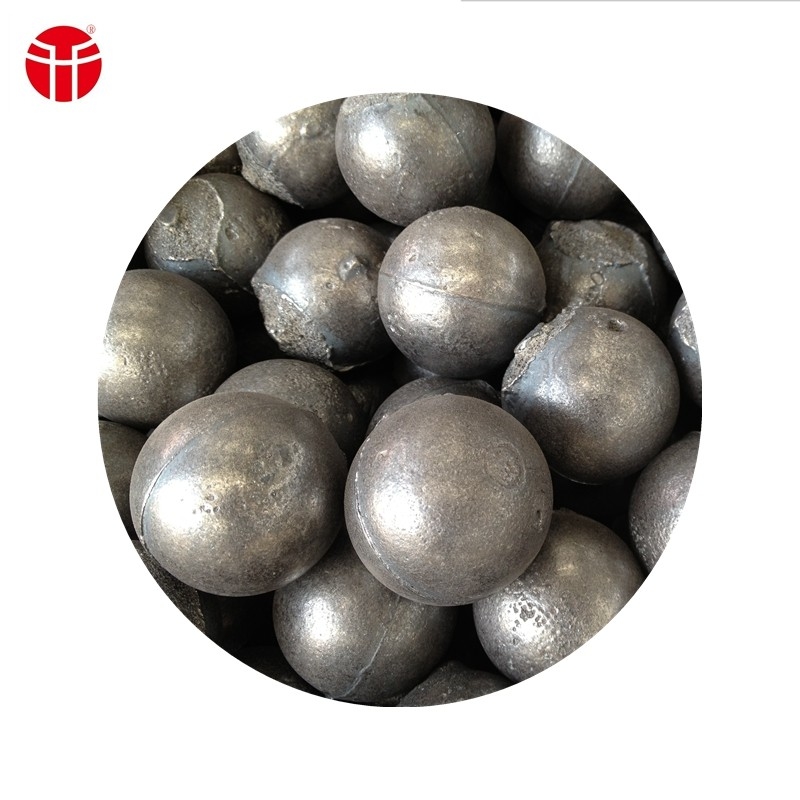

Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15%

Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15%
Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15% Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15% Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15% Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15%

Large Image :  Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15%

Product Details:
Place of Origin: China
Brand Name: HF
Certification: ISO
Model Number: 17-150mm
Payment & Shipping Terms:
Minimum Order Quantity: 10T
Price: USD 650-900/T
Packaging Details: Bags(one bag=one ton) or Drums(one drum=800-1000kg)
Delivery Time: 1-2week
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000T/month

Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15%

Description
Testing Time: 8000-12000 Times Breakage Rate: ≤2%
Impact Value: 1-7J/cm^2 Hardness: HRC45-65
Microstructure: Low Chrome:P+C Middle Chrome&High Chrome:M+C Hs Code: 73259110
High Light:

Zinc Mines Steel Grinding Ball

,

Copper Mines Steel Grinding Ball

,

Cast Steel Grinding Ball HRC45



Cast Iron Grinding Balls 80mm Zinc mines and copper mines cast iron steel grinding ball and forged iron balls



Company Profile



 Jinan Huafu Forging Co., Ltd, mainly produces grinding media in ball mill for many years. With the strength of forged steel ball, cast steel ball, grinding rod, steel cylpeb and steel ball production equipment. All of our products are strictly according to the ISO9001-2008 Standard. We also have other company named Shandong Huafu Steel Ball Co., Ltd, so we have ability to produce high quality and large quantity products.

The products we can produced as follow:

Hot rolling steel ball:20-60mm

Forged steel ball: Dia. 60mm-150mm

Casting steel ball: Dia. 17mm-130mm

Grinding rod: Dia. 30mm-130mm. Length: 3m-9m

Casting steel cylpeb: 8mm*10mm-70mm*75mm

Hot Rolling Steel Cylpeb: 20*30mm-50*60mm

Steel ball production line: Dia.20-150mm

Ball Mill Liners: according to ball mill

 Zinc Mines And Copper Mines Cast Steel Grinding Ball HRC45 - 65 Cr10-15% 0

The Specification of Casting Steel Ball

Low Chrome Casting Steel Ball

Chrome Concentration is 1-3%, hardness ≥ HRC 45, impact value ≥1J/CM^2, this steel ball is called low chrome grinding balls, which is made by smelting in intermediate frequency electric furnace, metal mould or sand casting process. It applies to metallurgic mines and slag industries where no high grinding accuracy or wearability is required.



Chemical Composition

C(%) Si(%) Mn(%) Cr(%) Cu(%) Mo(%) P(%) S(%)
2.1-3.6 1.5max 0.3-1.5 1.0-3.0 ≤0.8 ≤1.0 ≤0.10 ≤0.10
Size 17mm-150mm(0.8inch-6inch)



Hardness

Serious Hardness
Standard Hardness >45HRC
Impact Value ≥1.5J/CM^2
Balls Number ≥10000times
Microstructure P+C(C-Pearlite M-Martensite )



Medium Chrome Casting Steel Ball

Middle chrome grinding balls chrome concentration is 4-6%, hardness ≥ HRC 48, impact value ≥2J/CM^2Middle chrome grinding ball have a better performance than complex alloy ball.



Chemical Composition

C(%) Si(%) Mn(%) Cr(%) Cu(%) Mo(%) P(%) S(%)
2.1-3.3 1.5max 0.3-1.5 4.0-6.0 ≤0.8 ≤0.10 ≤0.10 ≤0.10
Size 20-150mm(0.8inch-6inch)



Hardness

Serious Hardness
Standard Hardness >50HRC
Impact Value ≥3J/CM^2
Balls Number ≥12000times
Microstructure M+C(C-Carbide M-Martensite )







High Chrome Casting Steel Ball

High chrome casting grinding ball, chrome concentration is 10%-24%, hardness ≥HRC58, impact value ≥3.5J/CM^2. High chrome casting grinding ball is one of the wearable steel ball with better performance-price-ratio, and its extensive usage has won itself a high share in the market.





Chemical Composition

C(%) Si(%) Mn(%) Cr(%) Cu(%) Mo(%) P(%) S(%)
2.0-3.3 1.2Max 0.3-1.5 10.0-24.0 ≤0.1.2 ≤0.10 ≤0.10 ≤0.10
Size 20-150mm(0.8inch-6inch)



Hardness

Serious Hardness
Standard Hardness >58HRC
Impact Value ≥5J/CM^2
Balls Number ≥15000times
Microstructure M+C(C-Carbide M-Martensite )
