Product Details:
|
| Place Of Origin: | Shandong, China | Brand Name: | HF |
|---|---|---|---|
| Material: | Steel, Round Steel | Balls Numbe: | 15000 Times |
| Dimensions: | Dia.1-6inch | Microstructure: | M+C |
| High Light: | 40mm Steel Forged Grinding Balls,Steel Forged Grinding Balls 6 inch,Middle Chrome Grinding Media Ball |
||

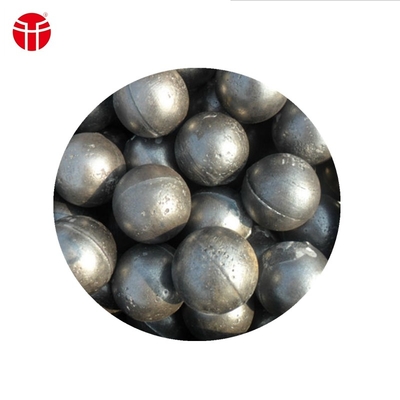

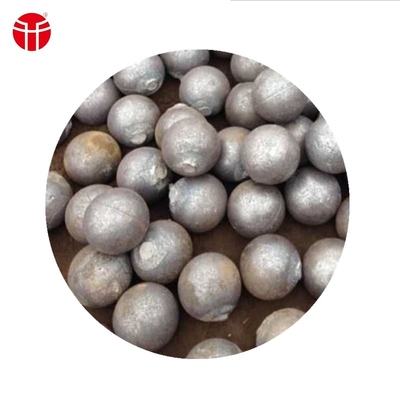

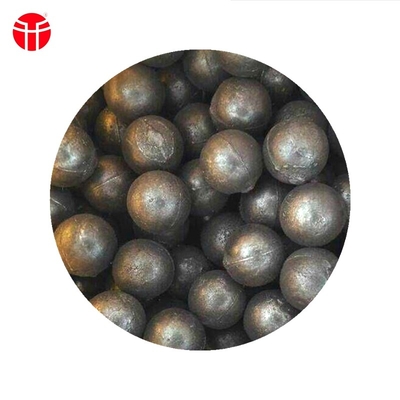

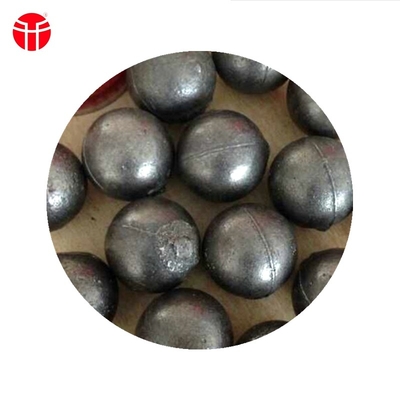

Cast Iron Grinding Balls 40mm Casting high Chrome Forged Casting Steel for Coal Cement Mills Media Grinding Balls
Our Address: Zhangqiu city,Shandong province
Our company area:80000square meters area
Our employees:over 100
Annual production capacity:100000 tons
Registered capital:50 million yuan.
Main products:forged steel ball,casting iron ball,steel cylpebs ,grinding rod,mill liners,steel,hammerhead,automatic production line of steel ball &grinding rod and decorative wrought iron products.
The Specification of Casting Steel Ball
Low Chrome Casting Steel Ball
Chrome Concentration is 1-3%, hardness ≥ HRC 45, impact value ≥1J/CM^2, this steel ball is called low chrome grinding balls, which is made by smelting in intermediate frequency electric furnace, metal mould or sand casting process. It applies to metallurgic mines and slag industries where no high grinding accuracy or wearability is required.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 2.1-3.6 | 1.5max | 0.3-1.5 | 1.0-3.0 | ≤0.8 | ≤1.0 | ≤0.10 | ≤0.10 | ||
| Size | 17mm-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | >45HRC | ||||||||
| Impact Value | ≥1.5J/CM^2 | ||||||||
| Balls Number | ≥10000times | ||||||||
| Microstructure | P+C(C-Pearlite M-Martensite ) | ||||||||
Medium Chrome Casting Steel Ball
Middle chrome grinding balls chrome concentration is 4-6%, hardness ≥ HRC 48, impact value ≥2J/CM^2Middle chrome grinding ball have a better performance than complex alloy ball.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 2.1-3.3 | 1.5max | 0.3-1.5 | 4.0-6.0 | ≤0.8 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | >50HRC | ||||||||
| Impact Value | ≥3J/CM^2 | ||||||||
| Balls Number | ≥12000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
High Chrome Casting Steel Ball
High chrome casting grinding ball, chrome concentration is 10%-24%, hardness ≥HRC58, impact value ≥3.5J/CM^2. High chrome casting grinding ball is one of the wearable steel ball with better performance-price-ratio, and its extensive usage has won itself a high share in the market.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 2.0-3.3 | 1.2Max | 0.3-1.5 | 10.0-24.0 | ≤0.1.2 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | >58HRC | ||||||||
| Impact Value | ≥5J/CM^2 | ||||||||
| Balls Number | ≥15000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
