Product Details:
|
| Diameter: | 20×25mm-50×55mm | Impact Value: | ≥5-7J/cm² |
|---|---|---|---|
| Hardness: | 45-58HRC | Breakage Rate: | ≤1% |
| Drop Times: | ≥12000 | Micri Structure: | M+C |
| High Light: | No Breakage Grinding Cylpebs,Grinding Cylpebs Hot Rolling |
||

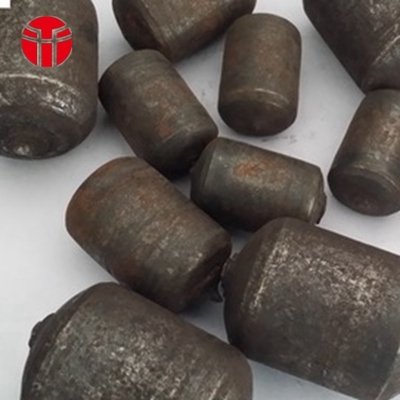

No Breakage Grinding Cylpebs Hot Rolling Forged Steel Cylpebs For Ball Mill
Hot rolling steel cylpeb is a new products studied independently by our company, produced by fully automatic hot rolling production line with high hardness and smooth surface. The material is same as forged steel ball. It can take place of casting steel cylpeb, widely used in cement plants, mines and autoclaved aerated concrete block industry. The production efficiency is far more than cast steel cylpeb.
Size of hot rolling steel cylpeb
| Dia*Length(mm) | Dia*Length(mm) | Dia*Length(mm) | Dia*Length(mm) |
| 20*30 | 25*35 | 30*40 | 35*45 |
| 40*50 | 45*55 | 50*60 | 55*65 |
| 60*70 |
| C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | Hardness | Impact value | Falling number | |
| HF-A | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 55-60HRC | ≥12J/CM^2 | ≥12000times |
| HF-B | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 55-60HRC | ≥12J/CM^2 | ≥12000times |
| HF-C | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 58-63HRC | ≥12J/CM^2 | ≥12000times |
| HF-D | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 60-65HRC | ≥15J/CM^2 | ≥15000times |
| HF-F | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 | 60-65HRC | ≥15J/CM^2 | ≥15000times |
| B-2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.80 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 62-67HRC | ≥15J/CM^2 | ≥15000times |
| B-3 | 0.72-0.92 | 0.17-0.37 | 0.70-1.0 | 0.50-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 62-67HRC | ≥15J/CM^2 | ≥15000times |
| B-4 | 0.60-0.65 | 1.6-1.7 | 0.7-0.8 | 0.7-0.8 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 62-67HRC | ≥15J/CM^2 | ≥15000times |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.9-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 | 62-67HRC | ≥15J/CM^2 | ≥15000times |
