Product Details:
|
| Processing Technology: | Hot Rolling Cylpebs | Diamter: | 20*25mm-50*55mm |
|---|---|---|---|
| Material: | Steel | Breakage Rate: | <1% |
| Business Position: | Manufacturer | Application: | Mines,cement Plan |
| High Light: | Grinding Media Cylpebs 50*55mm,Hot Rolling Grinding Media Cylpebs |
||

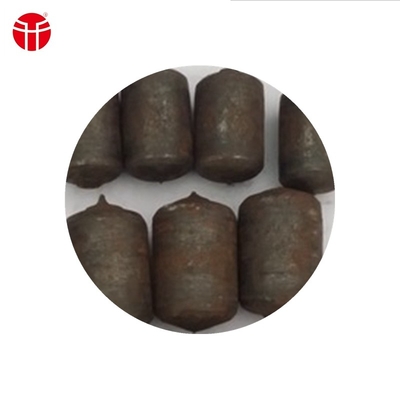

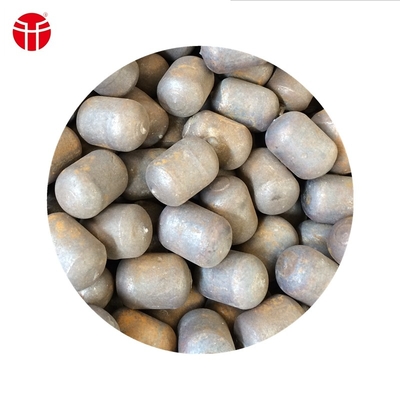

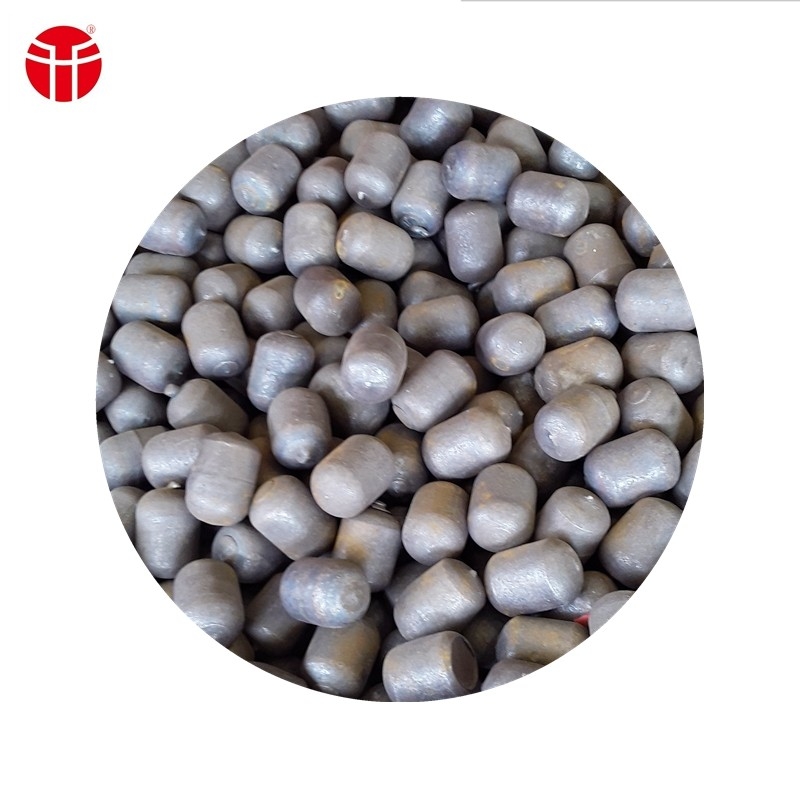

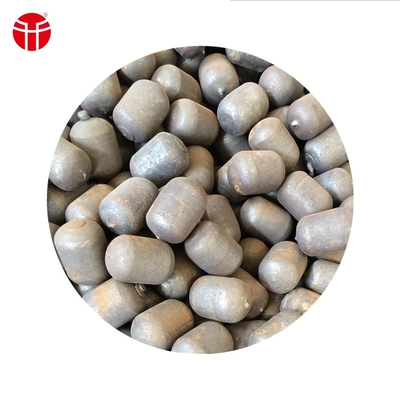

Grinding Cylpebs 2020 china hot sale grinding hot rolling cylpebs for chrome ore mine
Company Profile
We, Jinan Huafu Forging Co., Ltd, mainly produces grinding media in ball mill for many years. With the strength of forged steel ball, cast steel ball, grinding rod, steel cylpeb and steel ball production equipment. All of our products are strictly according to the ISO9001-2008 Standard. We also have other company named Shandong Huafu Steel Ball Co., Ltd, so we have ability to produce high quality and large quantity products.
The products we can produced as follow:
Hot rolling steel ball:20-60mm
Forged steel ball: Dia. 60mm-150mm
Casting steel ball: Dia. 17mm-130mm
Grinding rod: Dia. 30mm-130mm. Length: 3m-9m
Casting steel cylpeb: 8mm*10mm-70mm*75mm
Hot Rolling Steel Cylpeb: 20*30mm-50*60mm
Steel ball production line: Dia.20-150mm
Ball Mill Liners: according to ball mill
Skew rolling steel cylpebs
production line
Semi automatic production line of hot forging steel cylpebs
Raw material→furnace heating→cutting and forging→enter into rolling ball machine→Isothermal system→quenching system→steel cylpebs sweltering self tempering device→finished product steel cylpebs
Carbon steel grinding ball
Carbon steel grinding ball is the most commonly used one. Widely used in mines, power plants, chemical plants and mill factory’s large ball mill. Diameter is 20-150mm. And we can also customize all size of products according to clients’ demand. The main products performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 48-53HRC | ||||||||
| High Hardness | 55-60HRC | ||||||||
| Impact Value | ≥12J/CM^2 | ||||||||
| Balls Number | ≥12000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Special steel grinding ball I
This grinding ball is widely used all over the world. High volume hardness and less wearing. Quality is well accepted by the customers. Please kindly check the following detailed performance.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.72-0.80 | 0.17-0.37 | 0.8-0.9 | 0.5-0.6 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 58-63HRC | ||||||||
| High Hardness | 62-65HRC | ||||||||
| Impact Value | ≥15J/CM^2 | ||||||||
| Balls Number | ≥15000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Special steel grinding ball II
This grinding steel ball is one new type steel ball, good toughness and no breakage. It’s the new favorite in the users. Performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.58-0.65 | 1.60-1.90 | 0.65-0.80 | 0.70-0.90 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 58-63HRC | ||||||||
| High Hardness | 62-65HRC | ||||||||
| Impact Value | ≥18J/CM^2 | ||||||||
| Balls Number | ≥18000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
