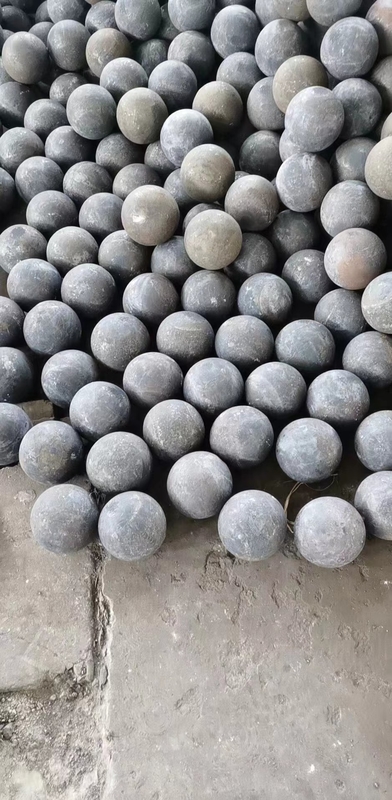

125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls

125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls
125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls 125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls

Large Image :  125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls

Product Details:
Place of Origin: China
Brand Name: HUAFU
Certification: ISO9001 14001
Model Number: 20-160MM
Payment & Shipping Terms:
Minimum Order Quantity: 1MT
Price: 690
Packaging Details: container bags/ steel drums
Delivery Time: 1-2weeks
Payment Terms: D/A, D/P, L/C, T/T
Supply Ability: 10000MT/month
Contact Now

125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls

Description
Hardness: 60-65HRC Breakage: 1%max
Material: Steel,High Manganese Steel Name: Grinding Steel Ball
High Light:

SAG Forged Grinding Balls

,

125mm Forged Grinding Balls

,

65HRC Mine Mill Balls

Forged Grinding BallsSAG mill grinding balls,125mm forged balls,grinding media







1.Diameter tolerance and roundness

Diameter 30 40 50 60 70 80 90 100 110 120 125 150
Diameter roundness(mm) ±2 +3,-2 +4,-3 +5,-4
Roundness(%) ≤2 ≤3 ≤4 ≤5



2.Chemical composition

Brand C(%) Si(%) Mn(%) Cr(%) Cu(%) Mo(%) P(%) S(%) Ni(%)
45# 0.42-0.50 0.17-0.37 0.5-0.80 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
40Mn 0.37-0.44 0.17-0.37 0.7-1.0 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
50Mn 0.48-0.56 0.17-0.37 0.60-1.0 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
60Mn 0.57-0.65 0.17-0.37 0.70-1.0 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
65Mn 0.62-0.70 0.17-0.37 0.90-1.0 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
70Mn 0.67-0.75 0.17-0.37 0.90-1.20 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
40Cr 0.37-0.45 0.17-0.37 0.50-0.8 0.80-1.1 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
42CrMo 0.38-0.45 0.17-0.37 0.50-0.80 0.90-1.2 0-0.03 0.15-0.25 0-0.035 0-0.035 0-0.30
70Cr2 0.65-0.75 0.20-0.30 0.75-0.90 0.55-0.70 0-0.25 0-0.30 0-0.030 0-0.030 0-0.30
40Mn2 0.37-0.44 0.17-0.37 1.4-1.8 0-0.25 0-0.25 0-0.30 0-0.035 0-0.30 0-0.30
70Mn2 0.65-0.75 0.20-0.45 1.4-1.8 0-0.25 0-0.25 0-0.30 0-0.035 0-0.030 0-0.30
B-1 0.52-0.65 0.17-0.37 0.60-1.2 0-0.25 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
B-2 0.70-0.80 0.17-0.37 0.70-0.80 0.50-0.60 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
B-3 0.58-0.66 1.2-1.6 0.65-0.80 0.70-0.90 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
B-4 0.60-0.65 1.6-1.7 0.7-0.8 0.7-0.8 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
B-6 0.75-0.85 0.2-0.40 0.9-1.0 0.85-0.95 0-0.25 0.06-0.13 0-0.035 02-0.035 0.06-0.13
B-6A 0.82-0.95 0.20-0.40 0.92-1.02 0.80-0.95 0-0.25 0.06-0.10 0-0.035 0-0.035 0.06-0.10
B-7 0.35-0.40 0.17-0.37 0.7-0.8 0.9-1.0 0-0.25 0-0.30 0-0.035 0-0.035 0-0.30
BU 0.95-1.05 0.17-0.37 0.9-1.10 0.40-0.60 0-0.15 0-0.05 0-0.035 0-0.035 0-0.30
Gr15 0.95-1.05 0.15-0.35 0.20-0.40 1.30-1.65 0-0.25 0-0.10 0-0.027 0-0.020 0-0.10



3.Technical specification

Brand Breakage rate Hardness
(HRC)		 Impact value
(J/cm²)		 Drop times
(times)		 Micro structure
45# <1% ≥45 ≥12 ≥8000 M+C
40Mn <1% ≥50 ≥12 ≥10000 M+C
50Mn <1% ≥55 ≥12 ≥10000 M+C
60Mn <1% ≥55 ≥12 ≥12000 M+C
65Mn <1% ≥58 ≥12 ≥12000 M+C
70Mn <1% ≥60 ≥12 ≥12000 M+C
40Cr <1% ≥55 ≥12 ≥12000 M+C
42CrMo <1% ≥55 ≥12 ≥12000 M+C
70Cr2 <1% ≥58 ≥12 ≥12000 M+C
40Mn2 <1% ≥55 ≥12 ≥12000 M+C
70Mn2 <1% ≥58 ≥12 ≥12000 M+C
B-1 <1% ≥55 ≥12 ≥12000 M+C
B-2 <1% ≥58 ≥12 ≥15000 M+C
B-3 <1% ≥60 ≥12 ≥15000 M+C
B-4 <1% ≥60 ≥12 ≥15000 M+C
B-6 <1% ≥60 ≥12 ≥15000 M+C
B-6A <1% ≥60 ≥12 ≥15000 M+C
B-7 <1% ≥60 ≥12 ≥15000 M+C
BU <1% ≥60 ≥12 ≥15000 M+C
Gr15 <1% ≥60 ≥12 ≥15000 M+C



125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls 0125mm SAG Forged Grinding Balls 60 - 65HRC Mine Mill Balls 1
