Product Details:
|
| Hardness: | 48-55HRC | Breakage Rate: | ≤1% |
|---|---|---|---|
| Impact Value: | ≥7J/cm² | Drop Times: | ≥12000 |
| Micro Structure: | M＋C | Material: | Iron |
| High Light: | 20mm Ball Mill Grinding Media,160mm Ball Mill Grinding Media,Iron Chrome Alloy Steel Ball |
||

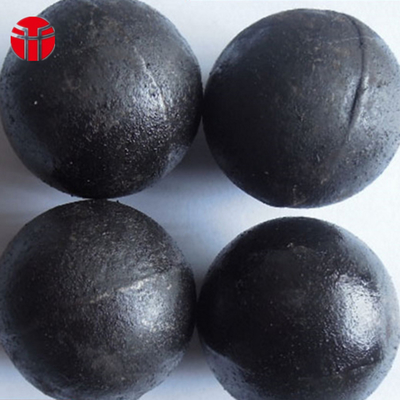

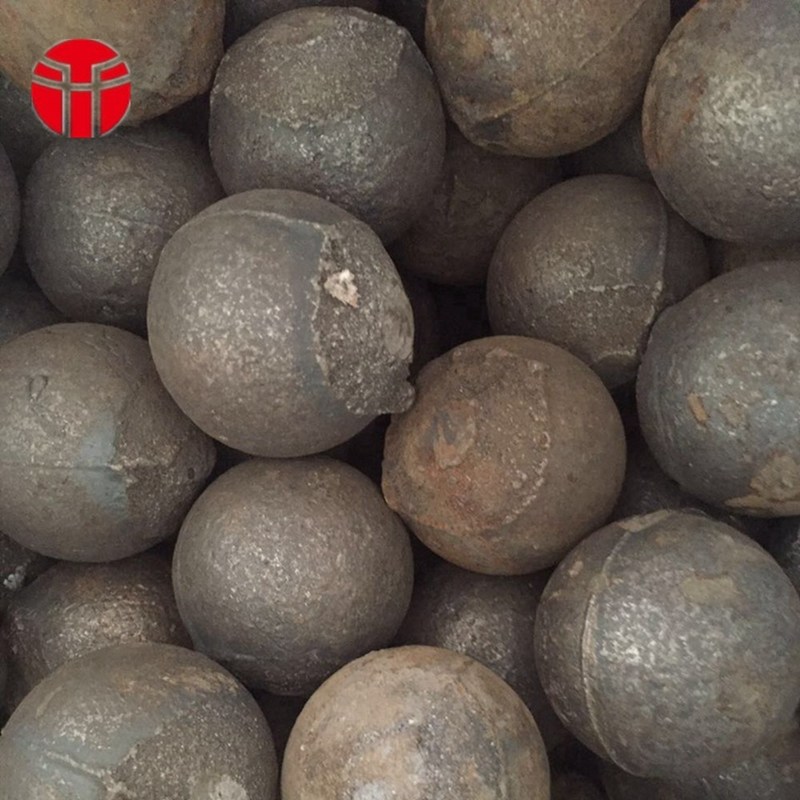

Low Medium High Chrome Alloy Casting Steel Balls/Iron Balls/ Ball Mill Grinding Media
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION
Our company mainly produces Ф20mm—Ф130mm low,middle,high chrome alloy casting iron ball. Huafu chose large angle steel,scrap steel and other raw material,according to different product,needs adding chrome,manganese,vanadium,titanium,rare earth and as so on metal.Products high hardness, low wear, good toughness and less broken, in the process of using sphere will further improve the surface hardness, wear resistance. Chrome alloy casting iron ball are widely used in cement, building materials, metal mining, coal slurry thermal power, chemical engineering, ceramic coating, light industry, papermaking, ultrafine powder preparation of magnetic materials and other industries and further processing.
High Chrome casting steel ball
High chrome casting grinding ball, chrome concentration is 10%－24%, hardness ≥HRC58. High chrome casting grinding ball is one of the wearable steel ball with better performance-price-ratio, and its extensive usage has won itself a high share in the market.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.0-3.3 | ≤1.2 | 0.3-1.5 | 10.0-24.0 | ≤1.2 | ≤3.0 | ≤0.10 | ≤0.10 |
Medium chrome casting steel ball
Middle chrome grinding balls chrome concentration is 4-6%, hardness ≥ HRC 48, Middle chrome grinding ball have a better performance than complex alloy ball.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.1-3.6 | ≤1.5 | 0.3-1.5 | 4.0-6.0 | ≤0.80 | ≤1.0 | ≤0.10 | ≤0.10 |
Low chrome casting steel ball
Chrome Concentration is 1-3%, hardness ≥ HRC 45, this steel ball is called low chrome grinding balls, which is made by smelting in intermediate frequency electric furnace, metal mould or sand casting process. It applies to metallurgic mines and slag industries where no high grinding accuracy or wearability is required.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.1-3.6 | ≤1.5 | 0.3-1.5 | 1.0-3.0 | ≤0.80 | ≤1.0 | ≤0.10 | ≤0.10 |
Production process of casting steel ball
Iron---Add Alloyed Material---Furnace Heating---Testing the Chemical Composition---Pouring to the Model---Out of the Model---Polishing---Quenching---Cooling---Tempering---finished steel ball testing---Packaging
