Product Details:
|
| Hardness: | 58-62HRC | Breakage Rate: | ≤1% |
|---|---|---|---|
| Impact Value: | ≥18J/cm² | Drop Times: | ≥15000 |
| Material: | Steel | HS: | 73261100 |
| High Light: | Bauxite Material Round Steel Balls,Round Steel Balls 62HRC |
||

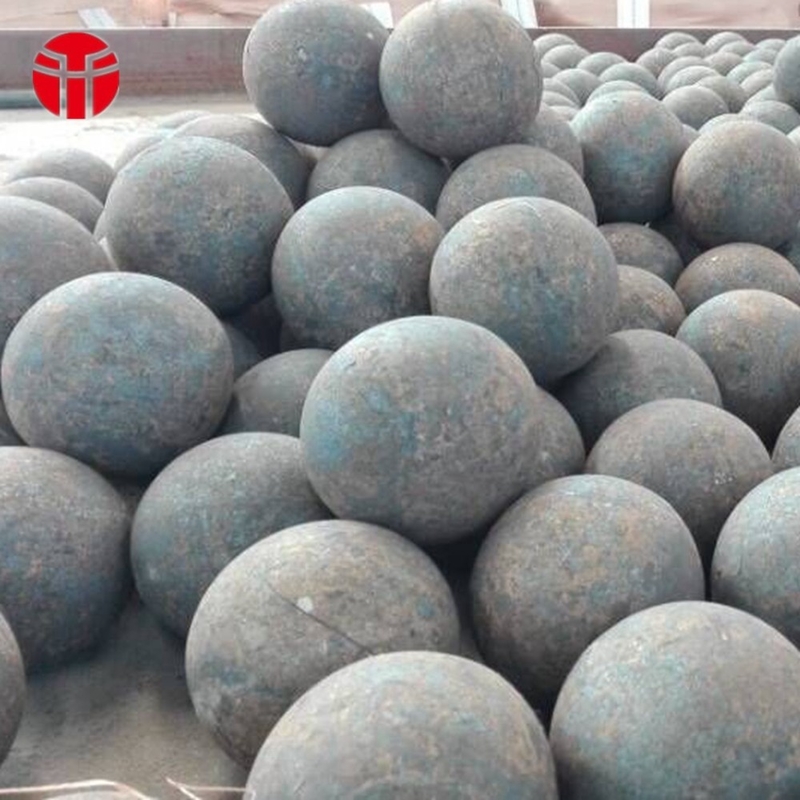

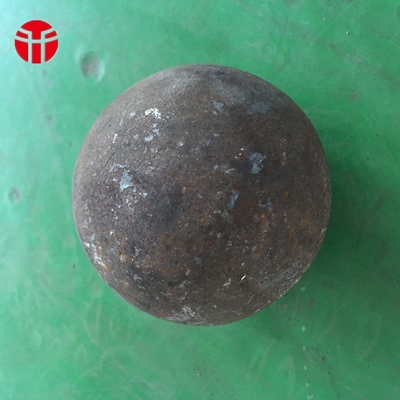

Forged Steel Ball Steel Steady Quality Forged Steel Bearing Ball For Grinding Bauxite Material
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION
Forged steel ball is divided into carbon grinding steel ball, manganese grinding steel ball and special grinding steel ball. Forged steel ball is one of our advantage products. Diameter 20-70mm and 80-150mm steel ball are produced respectively by advanced automatic hot rolling and hot forging steel ball production line. Huafu grinding balls with uniform hardness in a high efficiency due to its advanced quenching technology. In advanced, these grinding balls feature high accurate dimensions, rounded geometry shape, high hardness and good mechanical properties, wear - resistance, no deformation, no breakage.
Carbon steel grinding ball
Carbon steel grinding ball is the most commonly used one. Widely used in mines, power plants, chemical plants and mill factory’s large ball mill. Diameter is 20-150mm. And we can also customize all size of products according to clients’ demand. The main products performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 48-53HRC | ||||||||
| High Hardness | 55-60HRC | ||||||||
| Impact Value | ≥12J/CM^2 | ||||||||
| Balls Number | ≥12000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Manganese steel grinding ball I
Manganese steel grinding ball I is popular in Korea, Japan and North Korea, impact value is more than 12J/CM^2, manganese content is about 0.6-1.0%. This is the cheapest one in the manganese grinding balls. The performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.48-0.56 | 0.17-0.37 | 0.6-1.0 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 50-55HRC | ||||||||
| High Hardness | 55-60HRC | ||||||||
| Impact Value | ≥12J/CM^2 | ||||||||
| Balls Number | ≥12000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Manganese steel grinding ball II
Manganese steel grinding ball II with high hardness and corrosion resistance specialty. Mainly used in wet ball mill in mines and quartz sand factories.Has been exported to Pure, Mexico, Spain, India, Australia and South Africa. The specific performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.57-0.65 | 0.17-0.37 | 0.7-1.0 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 53-58HRC | ||||||||
| High Hardness | 55-60HRC | ||||||||
| Impact Value | ≥15J/CM^2 | ||||||||
| Balls Number | ≥15000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Manganese steel grinding ball III
Manganese steel grinding ball III with high manganese content, impact value is more than 15J/CM^2, less wearing. Well exported all over the world. Performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.62-0.70 | 0.17-0.37 | 0.9-1.0 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 55-60HRC | ||||||||
| High Hardness | 58-63HRC | ||||||||
| Impact Value | ≥15J/CM^2 | ||||||||
| Balls Number | ≥15000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Special steel grinding ball I
This grinding ball is widely used all over the world. High volume hardness and less wearing. Quality is well accepted by the customers. Please kindly check the following detailed performance.
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.72-0.80 | 0.17-0.37 | 0.8-0.9 | 0.5-0.6 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 58-63HRC | ||||||||
| High Hardness | 62-65HRC | ||||||||
| Impact Value | ≥15J/CM^2 | ||||||||
| Balls Number | ≥15000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Special steel grinding ball II
This grinding steel ball is one new type steel ball, good toughness and no breakage. It’s the new favorite in the users. Performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.58-0.65 | 1.60-1.90 | 0.65-0.80 | 0.70-0.90 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 58-63HRC | ||||||||
| High Hardness | 62-65HRC | ||||||||
| Impact Value | ≥18J/CM^2 | ||||||||
| Balls Number | ≥18000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
Other customized material
| Series/Element | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 80# | 0.77-0.85 | 0.17-0.37 | 0.50-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Mn | 0.37-0.44 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.40-1.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Mn | 0.65-0.75 | 0.17-0.37 | 0.90-1.20 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Mn2 | 0.65-0.75 | 0.20-0.45 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 |
| B1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B2B | 0.58-0.65 | 0.17-0.37 | 0.90-1.0 | 0.60-0.65 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B4 | 0.60-0.65 | 1.60-1.70 | 0.70-0.80 | 0.70-0.80 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.90-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.70-0.80 | 0.90-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| BV | 1-1.06 | 0.17-0.37 | 0.9-1.0 | 0.55-0.65 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.20 |
| 16Mn | 0.13-0.19 | 0.2-0.6 | 1.2-1.6 | 0-0.30 | 0-0.25 | --- | 0-0.03 | 0-0.03 |
| Diameter Tolerance(mm) | 20-25mm | 30-60mm | 70-90mm | 100-140mm | 150mm | ||
| ±1 | ±1.5 | +2,-2 | +2.5,-2 | +3,-2 | |||
| Roundness tolerance(%) | ≤1% | ≤1% | ≤1.5% | ≤2% | ≤2% | ||
|
Theoretical Ball Weight |
Diameter | Weight | Diameter | Weight | |||
| 20mm(0.80”) | 32.8g | 80mm(3.15”) | 2099.2g | ||||
| 25mm(1.00”) | 64.0625g | 85mm(3.35”) | 2517.9g | ||||
| 30mm(1.25”) | 110.7g | 90mm(3.55”) | 2988.9g | ||||
| 35mm(1.35”) | 175.7g | 100mm(4.00”) | 4100g | ||||
| 40mm(1.50”) | 262.4g | 110mm(4.35”) | 5457.1g | ||||
| 50mm(2.00”) | 512.5g | 120mm(4.75”) | 7084.8g | ||||
| 60mm(2.40”) | 885.6g | 125mm(5.00”) | 8007.8125g | ||||
| 65mm(2.50”) | 1125.9g | 130mm(5.20”) | 9007.7g | ||||
| 70mm(2.75”) | 1406.3g | 140mm(5.50”) | 11250.4g | ||||
| 75mm(3.00”) | 1729.6g | 150mm(6.00”) | 13837.5g | ||||
| Application | Cement plants, Mines, Power stations, Chemical industries, silica sand factory, other ball mills | ||||||
| Package | Bags(one bag can load one ton); Drums(one drum can load 800-1000kgs) | ||||||
|
|
|
||||||
