Product Details:
|
| Diameter Tolerabce: | -1.6mm，+2mm | Breakage Rate: | <1% |
|---|---|---|---|
| Material: | Steel | Product Name: | Steel Grinding Rods |
| Technology: | Heat Treated | Certificate: | ISO9001:2015 |
| High Light: | HRC55 Forged Steel Round Bar,HRC65 Forged Steel Round Bar,Iron Round Bar 6m |
||

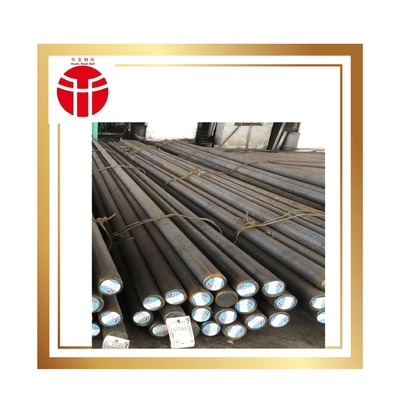

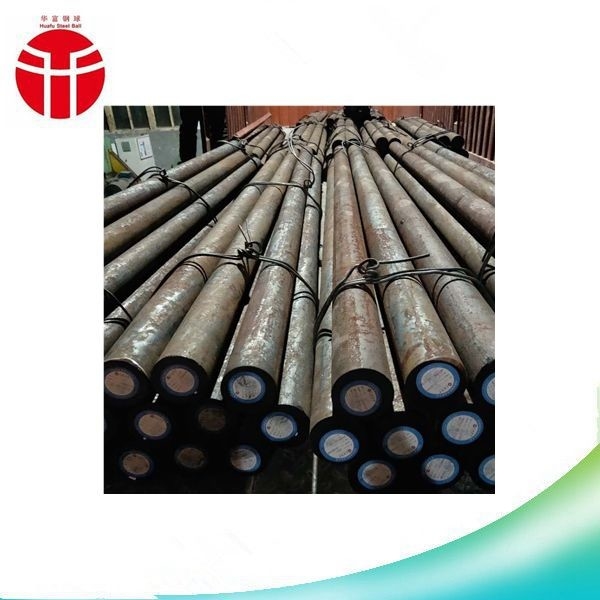

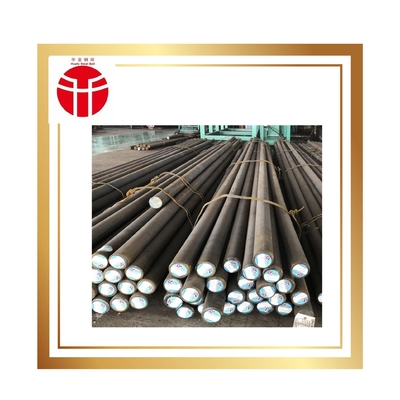

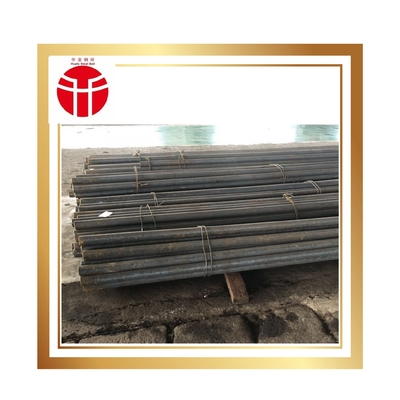

Steel Grinding Rods Factory production HRC55-65 Heat Treated Steel Grinding Rod best quality
Jinan Huafu Forging Co., Ltd, mainly produces grinding media in ball mill for many years. With the strength of forged steel ball, cast steel ball, grinding rod, steel cylpeb and steel ball production equipment. All of our products are strictly according to the ISO9001-2008 Standard. We also have other company named Shandong Huafu Steel Ball Co., Ltd, so we have ability to produce high quality and large quantity products.
The products we can produced as follow:
Hot rolling steel ball:20-60mm
Forged steel ball: Dia. 60mm-150mm
Casting steel ball: Dia. 17mm-130mm
Grinding rod: Dia. 30mm-130mm. Length: 3m-9m
Casting steel cylpeb: 8mm*10mm-70mm*75mm
Hot Rolling Steel Cylpeb: 20*30mm-50*60mm
Steel ball production line: Dia.20-150mm
Ball Mill Liners: according to ball mill
Our company produces a new type of alloy wear resistant steel rod is produced by the method,dimensions completely can be adjusted according to customer requirements, increase flexibility , To eliminate the unnecessary waste.At the same time, it extended the service life, improve the efficiency of the mill production, saves the production cost, reduce the labor of the workers.
production line
Production process of grinding rod
Raw material inspection →Blanking→Burr grinding→intermediate frequency furnace heating→straightening→Quenching treatment→Tempering treatment→Inspection→packing
Steel Grinding Rods
This Steel Grinding Rods is widely used all over the world. High volume hardness and less wearing. Quality is well accepted by the customers. Please kindly check the following detailed performance.
|
Chemical Composition |
C(%) |
Si(%) |
Mn(%) |
Cr(%) |
Cu(%) |
Mo(%) |
P(%) |
S(%) |
|
|
0.37-0.45 |
0.17-0.37 |
0.5-0.8 |
0.8-1.1 |
≤0.25 |
≤0.3 |
≤0.035 |
≤0.035 |
||
|
Size |
2m-6m |
||||||||
|
Hardness |
Serious |
Hardness |
|||||||
|
Standard Hardness |
45-55HRC |
||||||||
|
|
|
||||||||
|
Impact Value |
5-7J/CM^2 |
||||||||
|
Drop Number |
≥10times |
||||||||
|
Microstructure |
M+C(C-Carbide M-Martensite ) |
||||||||
Jinan Huafu Forging Co.,ltd is located in Zhangqiu City, Shandong Province, 45 Kilometers to the Jinan downtown, next to the 309 National Highway, enjoying firsthand Information and convenient traffic. Our company covers 80000 square meters, with over 100 employees, annual production capacity of 100000 tons and registered capital of seventy million yuan. We mainly produces forged steel balls, cast iron balls, steel cylpebs, grinding rods, mill liners, steel, hammer heads, automatic production lines for steel balls & grinding rods, decorative wrought iron products and paper-making machinery.
