Product Details:
|
| Hardness: | 55-60HRC | Breakage Rate: | ≤1% |
|---|---|---|---|
| Impact Value: | ≥12J/cm² | Drop Times: | ≥12000 |
| Standard: | YB/T 091-2019 | Material: | Carbon Steel |
| High Light: | 55HRC Carbon Steel Forged Grinding Balls,60HRC Carbon Steel Forged Grinding Balls,Steel Grinding Balls Wear Resisting |
||

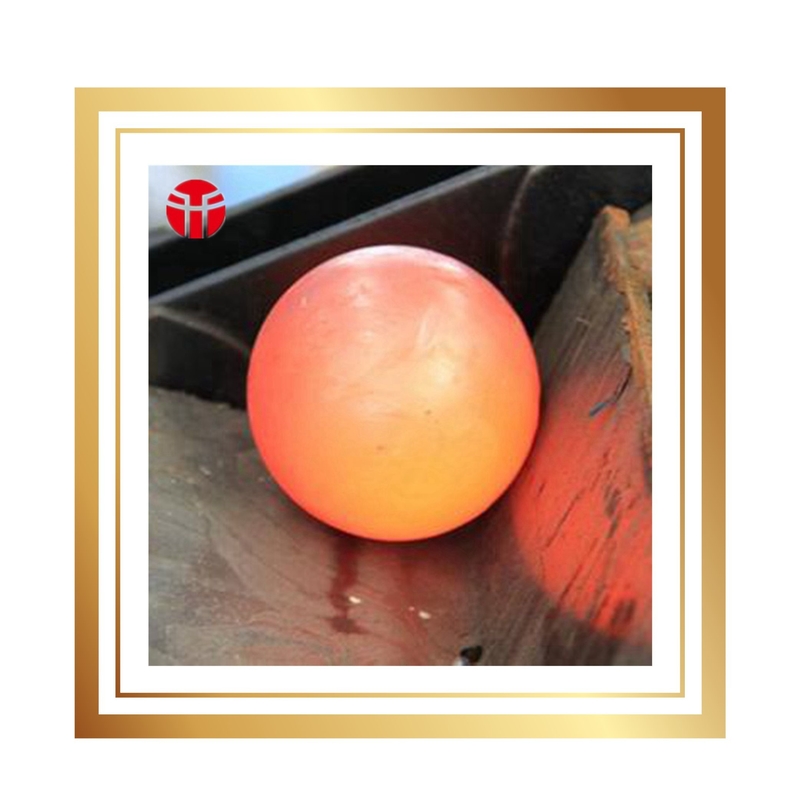

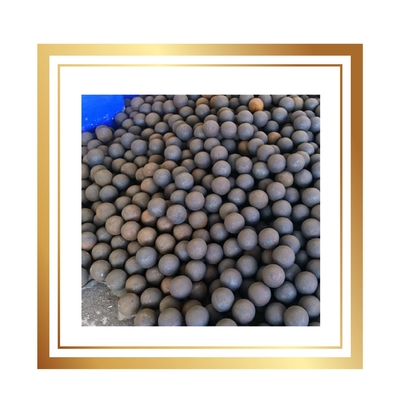

Wear Resisting/High Hardness/Carbon Steel Forged Grinding Balls For Ball Mill
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION
Carbon steel grinding ball is the most commonly used one. Widely used in mines, power plants, chemical plants and mill factory’s large ball mill. Diameter is 20-150mm. And we can also customize all size of products according to clients’ demand. The main products performance as follow:
|
Chemical Composition |
C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | |
| 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 | ||
| Size | 20-150mm(0.8inch-6inch) | ||||||||
|
Hardness |
Serious | Hardness | |||||||
| Standard Hardness | 48-53HRC | ||||||||
| High Hardness | 55-60HRC | ||||||||
| Impact Value | ≥12J/CM^2 | ||||||||
| Balls Number | ≥12000times | ||||||||
| Microstructure | M+C(C-Carbide M-Martensite ) | ||||||||
