Product Details:
|
| Hardness: | 58-62HRC | Breakage Rate: | ≤1% |
|---|---|---|---|
| Impact Value: | ≥18J/cm² | Drop Times: | ≥15000 |
| Material: | Steel | Brand: | HUA FU |
| High Light: | 65Mn Forged Steel Balls,70Cr2 Forged Steel Balls |
||

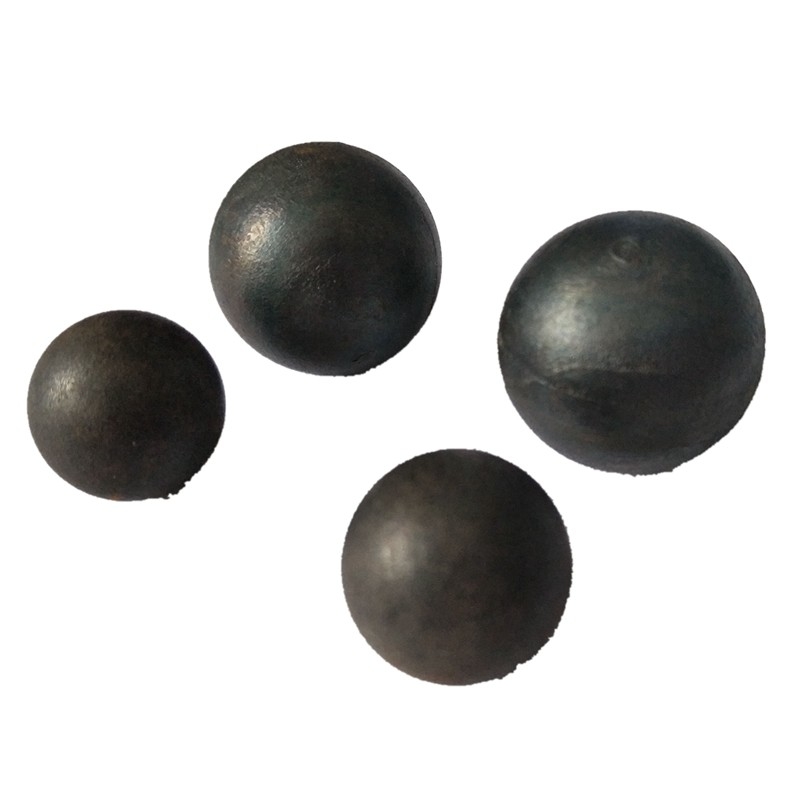

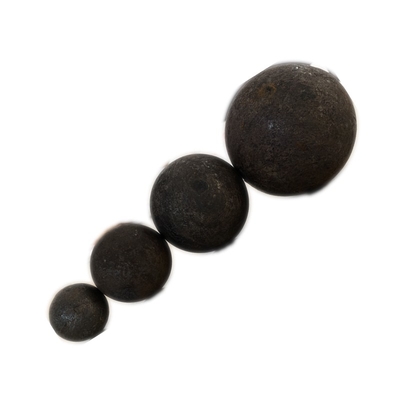

Factory Directly Grinding Steel Ball For Ball Mill /Forged Steel Balls
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION
Forged steel ball is divided into carbon grinding steel ball, manganese grinding steel ball and special grinding steel ball. Forged steel ball is one of our advantage products. Diameter 20-70mm and 80-150mm steel ball are produced respectively by advanced automatic hot rolling and hot forging steel ball production line. Huafu grinding balls with uniform hardness in a high efficiency due to its advanced quenching technology. In advanced, these grinding balls feature high accurate dimensions, rounded geometry shape, high hardness and good mechanical properties, wear - resistance, no deformation, no breakage.
| Diameter Tolerance(mm) | 20-25mm | 30-60mm | 70-90mm | 100-140mm | 150mm | ||
| ±1 | ±1.5 | +2,-2 | +2.5,-2 | +3,-2 | |||
| Roundness tolerance(%) | ≤1% | ≤1% | ≤1.5% | ≤2% | ≤2% | ||
|
Theoretical Ball Weight |
Diameter | Weight | Diameter | Weight | |||
| 20mm(0.80”) | 32.8g | 80mm(3.15”) | 2099.2g | ||||
| 25mm(1.00”) | 64.0625g | 85mm(3.35”) | 2517.9g | ||||
| 30mm(1.25”) | 110.7g | 90mm(3.55”) | 2988.9g | ||||
| 35mm(1.35”) | 175.7g | 100mm(4.00”) | 4100g | ||||
| 40mm(1.50”) | 262.4g | 110mm(4.35”) | 5457.1g | ||||
| 50mm(2.00”) | 512.5g | 120mm(4.75”) | 7084.8g | ||||
| 60mm(2.40”) | 885.6g | 125mm(5.00”) | 8007.8125g | ||||
| 65mm(2.50”) | 1125.9g | 130mm(5.20”) | 9007.7g | ||||
| 70mm(2.75”) | 1406.3g | 140mm(5.50”) | 11250.4g | ||||
| 75mm(3.00”) | 1729.6g | 150mm(6.00”) | 13837.5g | ||||
| Application | Cement plants, Mines, Power stations, Chemical industries, silica sand factory, other ball mills | ||||||
| Package | Bags(one bag can load one ton); Drums(one drum can load 800-1000kgs) | ||||||
|
|
|
||||||
