Product Details:
|
| Breakage Rate: | ≤1% | Drop Times: | ≥12000 |
|---|---|---|---|
| Hardness: | 55-65HRC | Impact Value: | ≥12J/cm² |
| Material: | Steel | HS: | 73259100 |
| High Light: | Hot Rolling Grinding Balls For Mining,Forged Grinding Balls For Mining,65HRC Grinding Media Ball |
||

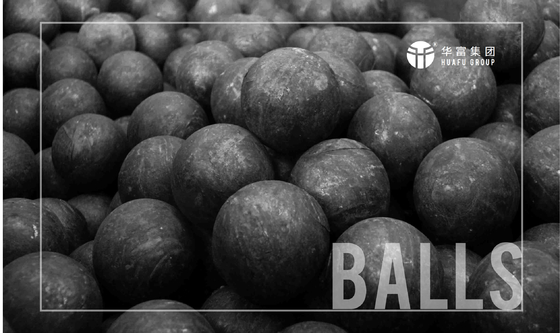

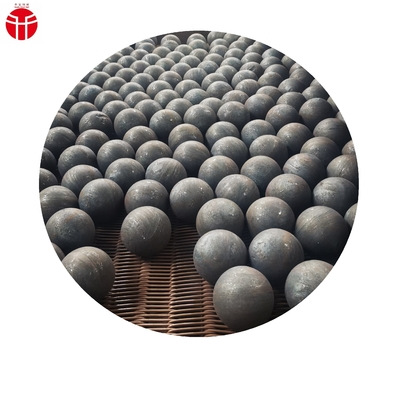

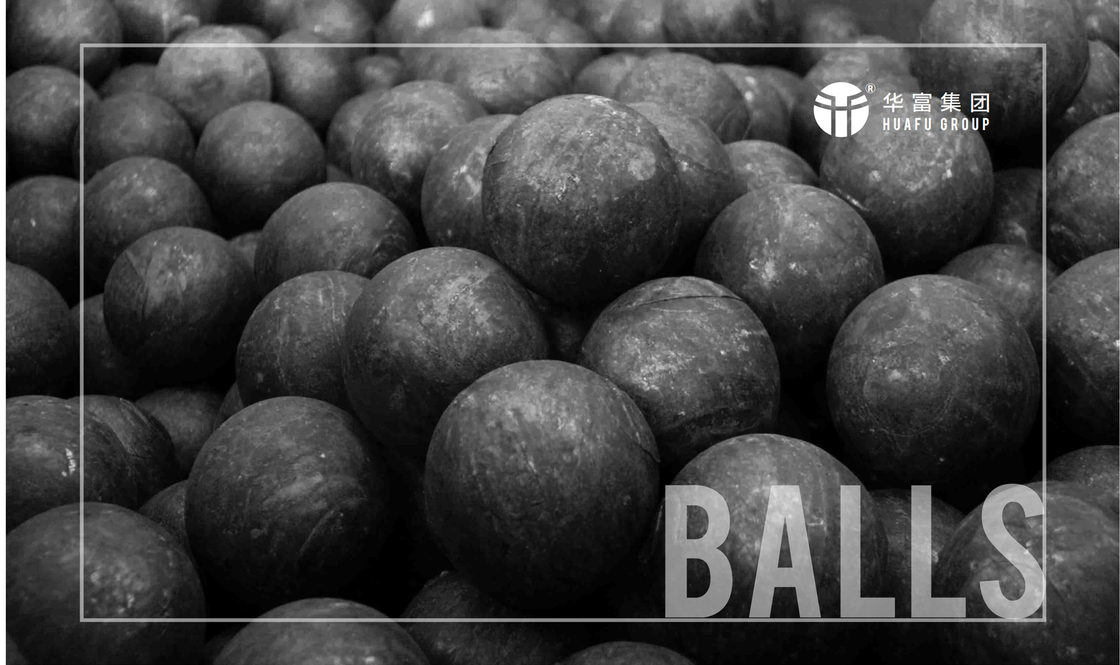

Hot Rolling Forged Steel Ball Grinding Balls For Mining Made In China
COMPANY ENVIOMENT
PRODUCTS INTRODUCTION
Forged steel ball is divided into carbon grinding steel ball, manganese grinding steel ball and special grinding steel ball. Forged steel ball is one of our advantage products. Diameter 20-70mm and 80-150mm steel ball are produced respectively by advanced automatic hot rolling and hot forging steel ball production line. Huafu grinding balls with uniform hardness in a high efficiency due to its advanced quenching technology. In advanced, these grinding balls feature high accurate dimensions, rounded geometry shape, high hardness and good mechanical properties, wear - resistance, no deformation, no breakage.
1.Chemical composition
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 60Mn | 0.57-0.44 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.40-1.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.00 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Mn2 | 0.65-0.75 | 0.20-0.45 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 |
| B1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.8 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B3 | 0.58-0.66 | 1.20-1.60 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.90-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.70-0.80 | 0.90-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| BV | 1-1.06 | 0.17-0.37 | 0.9-1.0 | 0.55-0.65 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.20 |
| 16Mn | 0.13-0.19 | 0.2-0.6 | 1.2-1.6 | 0-0.30 | 0-0.25 | --- | 0-0.03 | 0-0.03 |
2.Forged Steel Ball Details
| Diameter Tolerance(mm) | 20-25mm | 30-60mm | 70-90mm | 100-140mm | 150mm | ||
| ±1 | ±1.5 | +2,-2 | +2.5,-2 | +3,-2 | |||
| Roundness tolerance(%) | ≤1% | ≤1% | ≤1.5% | ≤2% | ≤2% | ||
|
Theoretical Ball Weight |
Diameter | Weight | Diameter | Weight | |||
| 20mm(0.80”) | 32.8g | 80mm(3.15”) | 2099.2g | ||||
| 25mm(1.00”) | 64.0625g | 85mm(3.35”) | 2517.9g | ||||
| 30mm(1.25”) | 110.7g | 90mm(3.55”) | 2988.9g | ||||
| 35mm(1.35”) | 175.7g | 100mm(4.00”) | 4100g | ||||
| 40mm(1.50”) | 262.4g | 110mm(4.35”) | 5457.1g | ||||
| 50mm(2.00”) | 512.5g | 120mm(4.75”) | 7084.8g | ||||
| 60mm(2.40”) | 885.6g | 125mm(5.00”) | 8007.8125g | ||||
| 65mm(2.50”) | 1125.9g | 130mm(5.20”) | 9007.7g | ||||
| 70mm(2.75”) | 1406.3g | 140mm(5.50”) | 11250.4g | ||||
| 75mm(3.00”) | 1729.6g | 150mm(6.00”) | 13837.5g | ||||
| Application | Cement plants, Mines, Power stations, Chemical industries, silica sand factory, other ball mills | ||||||
